Gimbal Pixy WP
for WIRIS Pro & Pro Sc

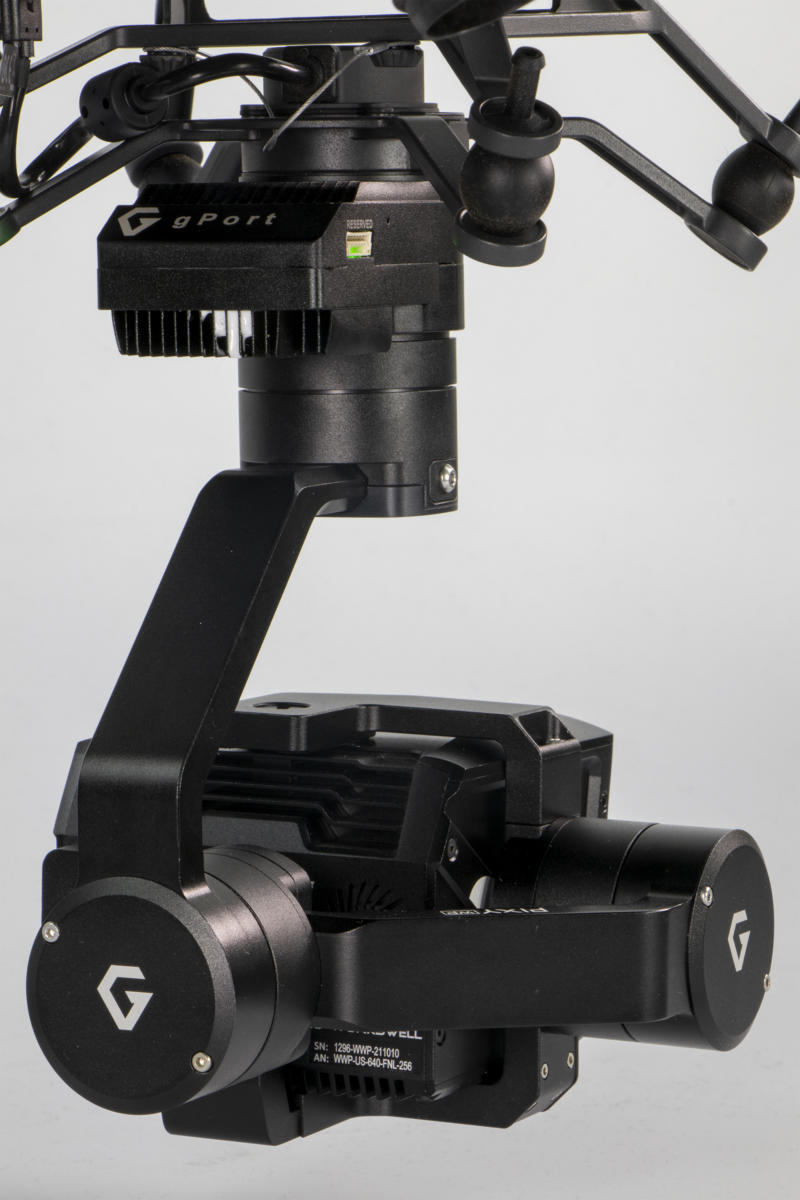

Gimbal PIXY WP
for Wiris Pro edition & Agro
Gremsy Pixy WP is a cutting-edge gimbal system designed specifically for professionals who demand smooth and stable camera movements in their aerial photography and videography work. Developed by Gremsy, a leading manufacturer of gimbal solutions, the Pixy WP offers advanced features and exceptional performance to enhance the quality of aerial imaging.
One of the standout features of the Gremsy Pixy WP is its waterproof design. Built to withstand harsh weather conditions and water exposure, this gimbal is ideal for capturing breathtaking shots in challenging environments, such as rainy or snowy weather, over water, or in humid conditions. With an IP66-rated waterproof housing, the Pixy WP offers reliable protection for your camera equipment, ensuring that your gear remains safe and functional in adverse conditions.
Are you interested?
Easy to use
Ease of use is another highlight of the Gremsy Pixy WP. It features a simple plug-and-play setup, allowing users to quickly install and calibrate their cameras with ease.
The intuitive user interface makes it easy to adjust settings and customize the gimbal's behavior according to your shooting preferences.
The Pixy WP also supports a variety of control options, including wireless remote control, joystick control, and mobile app control, giving users flexibility in how they interact with the gimbal.
In addition to its outstanding performance, the Pixy WP offers a durable and lightweight design, making it suitable for use in a wide range of aerial platforms, including drones, helicopters, and other aerial vehicles. The gimbal is also equipped with a built-in power distribution system that provides power to both the gimbal and the camera, reducing the need for additional cables and simplifying the setup process.
- 1. Operation Modes
- Motor ON/OFF
- Lock mode
- Follow mode / Mapping mode
- 2. Temperature Sensor
- 3. Gremsy Specialized Gimbal Drive Motors with Encoders
- 4. Micro USB Connection
- 5. Gremsy Advanced 32-Bit high performance ARM microprocessor
- 6. S-Bus/Spektrum/PPM Receiver Supported
- Static current: 400mA (@12V)
- Dynamic current: 800mA (@12V)
- Locked motor current: Max 4.0A (@12V)
-Camera Tray Dimensions
- Maximum depth from the center of gravity on camera base plate: 38.4mm
- Maximum height measured from top of camera base plate: 64mm
- Maximum width: 85.7mm
-Input Power: 12V-5A, UBEC
-Connections: USB 2.0, CAN, UART, S-bus, Spektrum, PPM, Bluetooth 4.0
-PC Assistant Software Requirements: Windows 10 or above; macOS 12.0 or above
-Mobile Assistant Software Requirements: iOS 14.0 or above; Android 10.0 or above
- Pan axis control: +330° to -330°
- Tilt axis control: +135° to -45°
- Roll axis control: +45° to -90°
- Pan axis control: +330° to -330°
- Tilt axis control: +135° to -45°
- Roll axis control: ± 45°

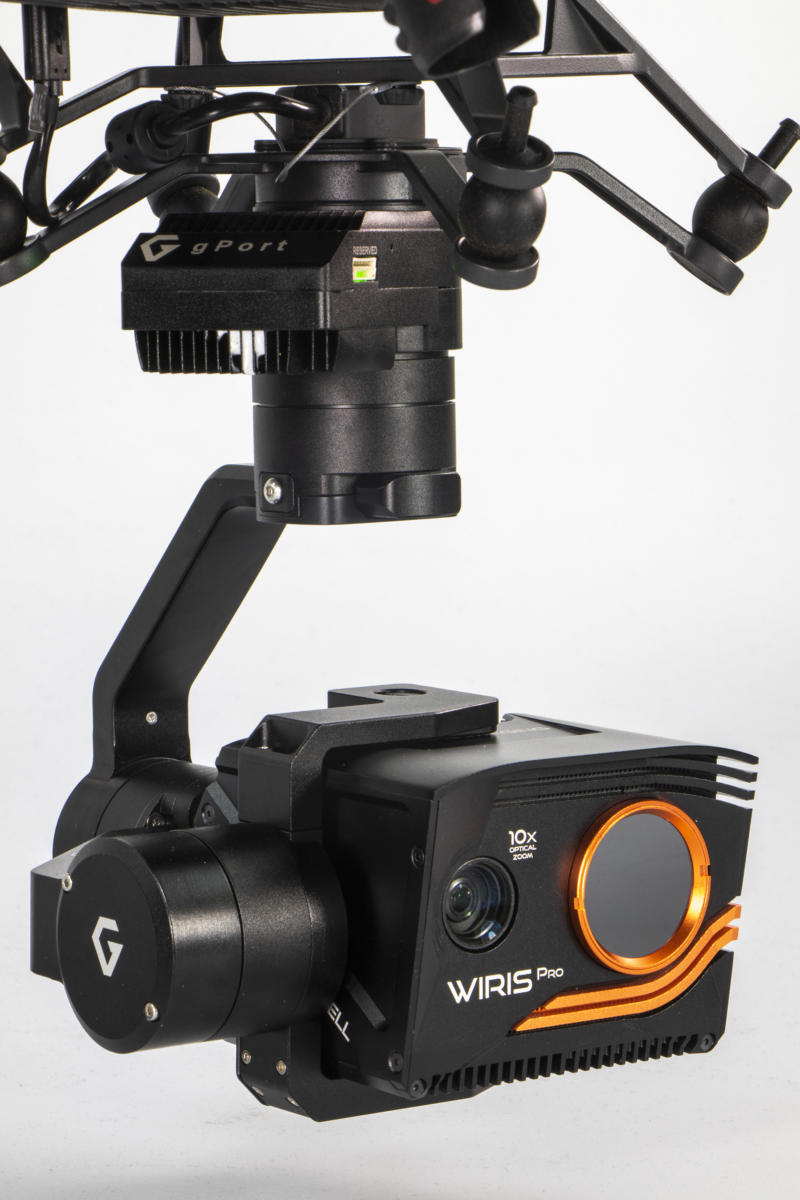

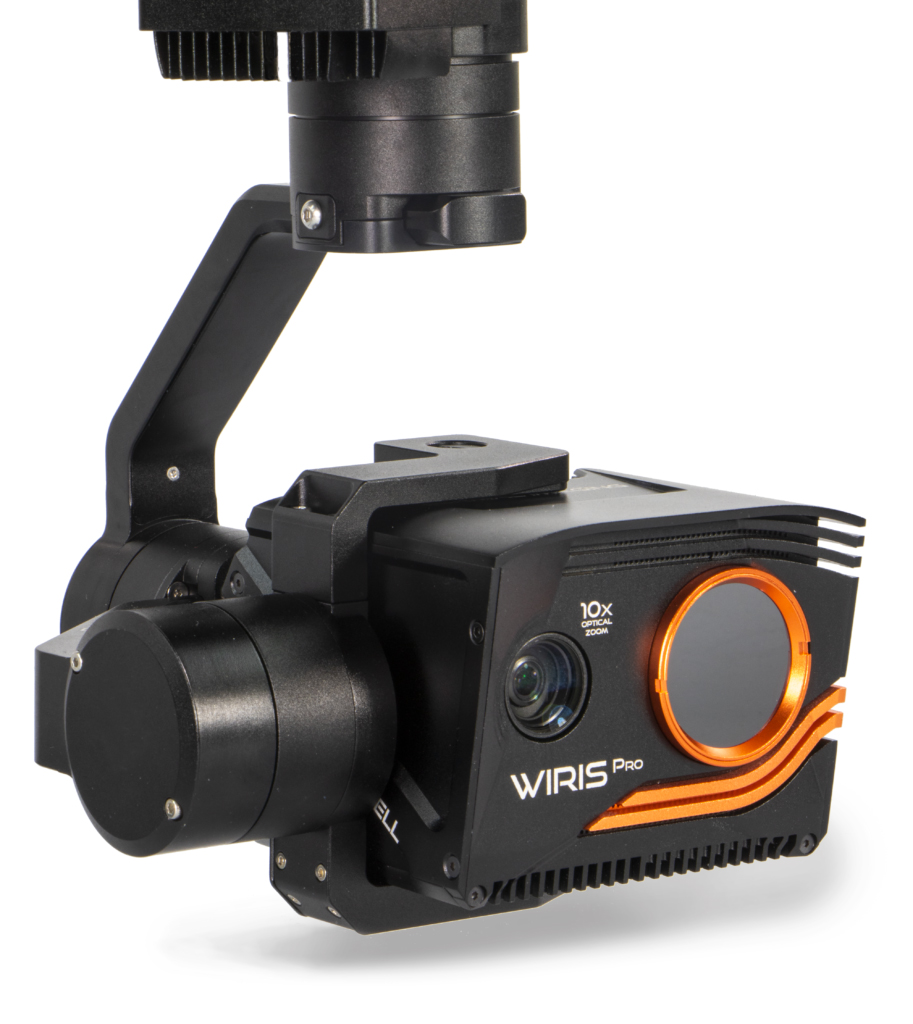

built for Wiris series camera & M300/M350 RTK integration
Specifically made for WIRIS Pro, Pro SC and WIRIS Agro R. Pixy WP fully supports powerful capabilities of these thermal sensors to play in the field of precision agriculture, mapping, surveying and inspection.

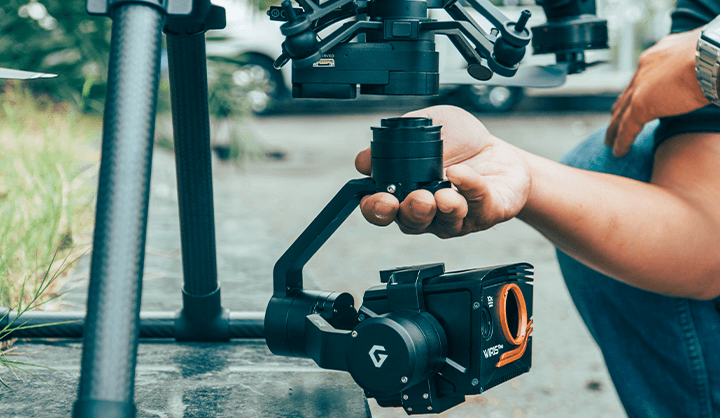

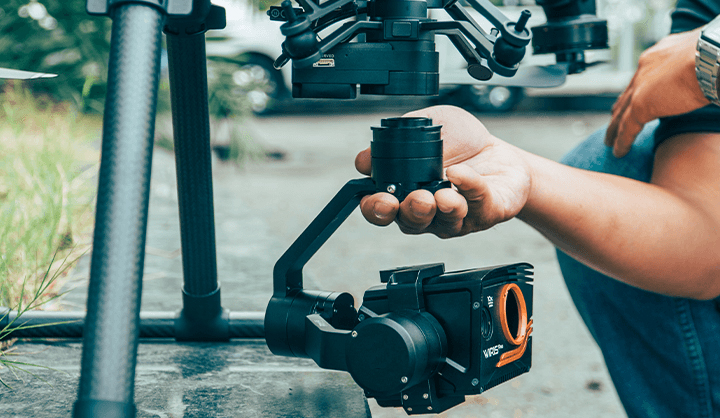

No balancing nor tuning required, Pixy WP gives you the superfast setup time within seconds, ready to plug and play with your drone easily.
Click for more information about PIXY WP on Gremsy website
Video
Gallery
WIRIS Pro

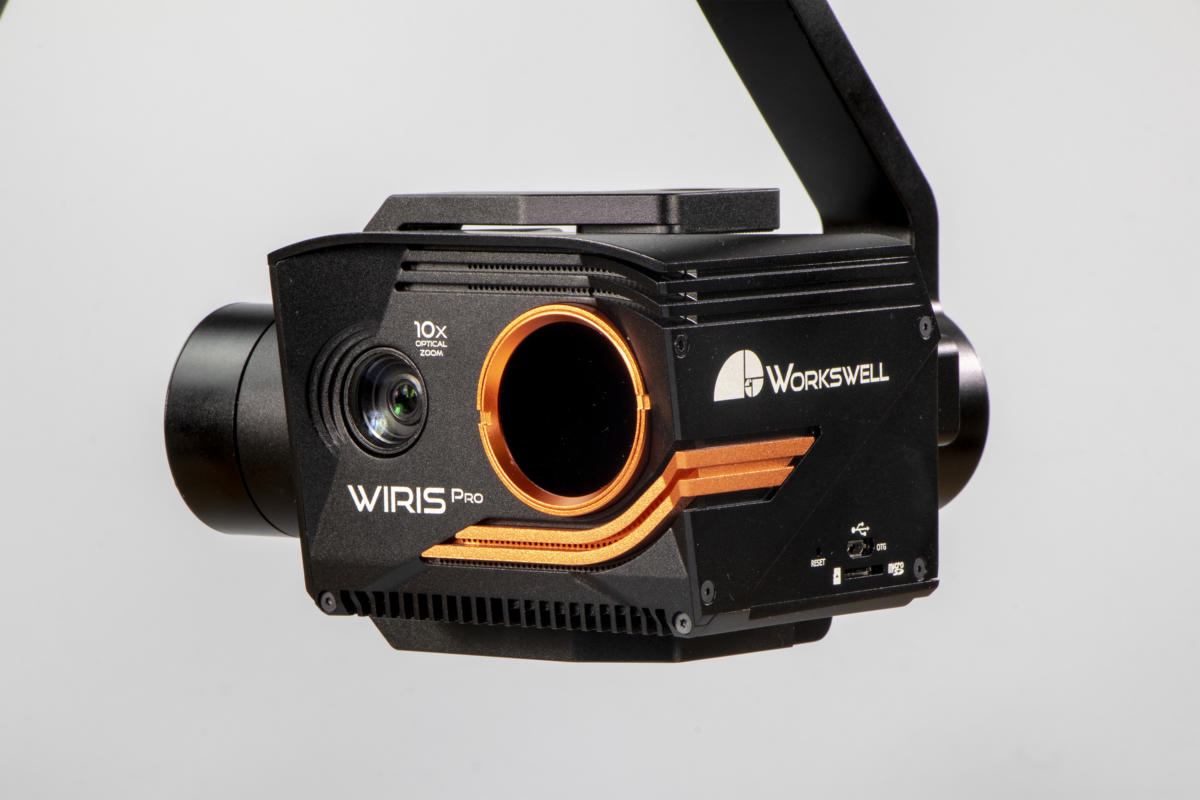

The Workswell WIRIS® Pro is a specially designed thermodiagnostic device. Its thermal camera is equipped with an LWIR microbolometric sensor with 640×512 px resolution (in the 7.5 – 13.5 μm range), and its 'Super Resolution Mode' functionality delivers a final thermogram in 1266x1010 px resolution. The RGB camera comes with Full HD (1920 x 1080 px) resolution and provides an absolutely unrivalled optical ultrazoom – as much as 10x (6.9° to 58.2° field of vision). The highest possible temperature that the thermal camera can measure is 1,500 °C.
Broad temperature range
Highest sensor resolution on the market
Precise laboratory calibration
Interchangable lenses
10x optical RGB zoom
Thermal frame
Thermal imaging camera
WIRIS Pro is an advanced thermal imaging camera developed by Workswell, a leading provider of thermal imaging solutions. This high-performance camera is designed to capture accurate and detailed thermal images for a wide range of applications, from building diagnostics and industrial inspections to research and development.
Equipped with state-of-the-art features such as a high-resolution sensor, multiple lenses, and advanced image processing algorithms, WIRIS Pro delivers exceptional image quality and thermal sensitivity. It also offers a range of measurement tools and features for advanced analysis, including temperature measurement, radiometry, and advanced reporting capabilities.
WIRIS Pro is a versatile and reliable thermal imaging camera and solution, that can help professionals in various industries to detect and diagnose issues quickly and accurately. With its robust design and advanced features, it is an ideal tool for anyone looking to improve their thermal imaging capabilities and streamline their workflow.
Inspection and Mapping
The WIRIS Pro thermal imaging camera is a versatile device that can be used for both inspection and mapping purposes. It utilizes infrared technology to detect and measure the temperature of objects and surfaces, and can produce high-resolution thermal images and videos.
For inspection purposes, the thermal imaging camera can be used to detect and locate thermal anomalies in a wide range of applications, including electrical, mechanical, and building inspections. The camera can identify overheating components, energy losses, and other potential problems that are not visible to the naked eye.
For mapping purposes, the camera can be used to create thermal maps of large areas, such as industrial plants, solar farms, or agricultural fields. The camera can capture thermal data over a wide range of temperatures and can create high-resolution thermal images that can be used to identify temperature variations and patterns over time.
Weight and Dimensions
Workswell's WIRIS® weighs less than 430 g, which makes it very convenient for drone use.
WEIGHT: < 430 g (0.95 lb)
DIMENSIONS : 83 x 85 x 68 mm (3.26 in x 3.34 in x 2.67 in)
High Resolution and Thermal Sensitivity
Our thermal imaging camera is equipped with an LWIR microbolometric sensor with 640x512 px resolution and Super Resolution Mode functionality, which facilitates the creation of a final thermogram at 1266 x 1010 px resolution. The standard WIRIS Pro delivers 50 mK temperature sensitivity, and we offer a 30 mK premium version.
128 GB or 256 SSD Disk, External USB Disk or microSD Card
Workswell WIRIS® Pro camera is equipped with an internal SSD disc with 128 GB or 256 GB memory for recording. You can also save data to an external USB disk or microSD card.
Precision Metrology
We know that industrial applications present a serious challenge to metrological endeavors. To ensure the accuracy of our devices in the face of this challenge, we calibrate each of our lenses individually. Our thermal imaging camera WIRIS Pro and also all cameras are individually manufactured and precisely calibrated, and we deliver a final calibration certificate along with each unit.
Durable Design

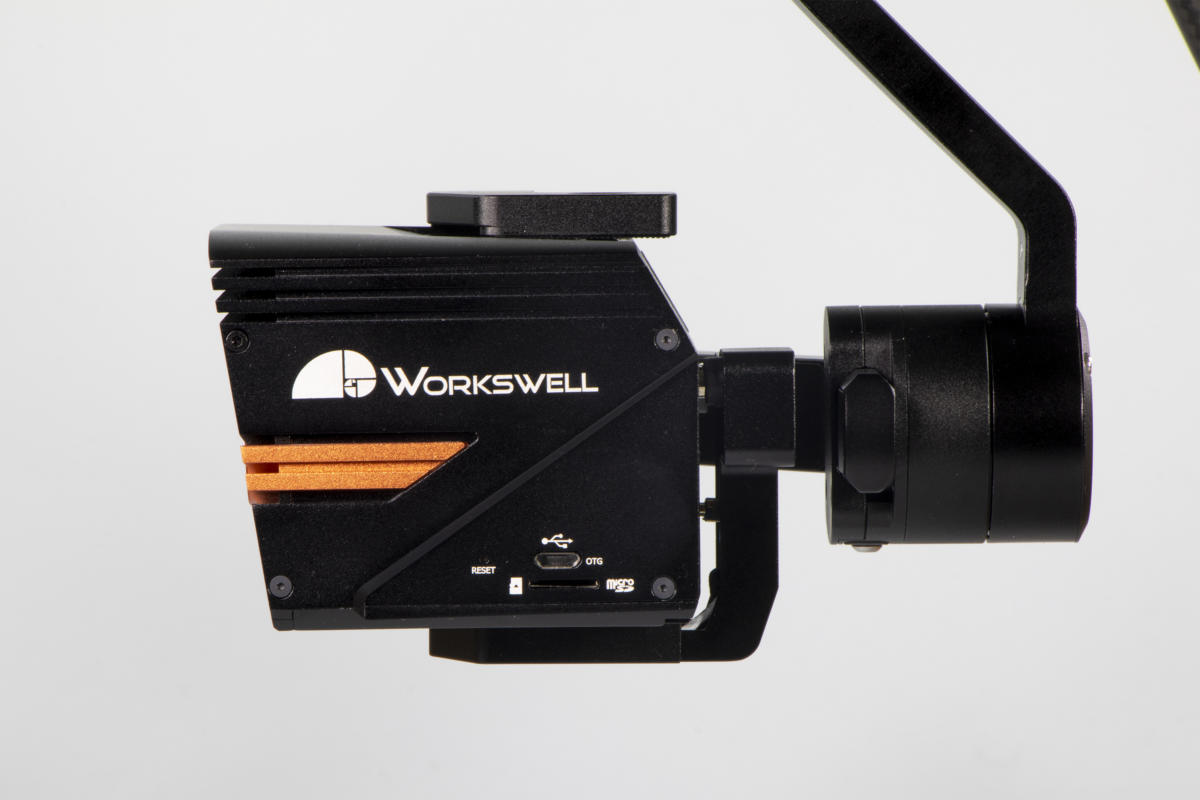

The WIRIS® Pro is ensconced a rugged casing of lightweight aluminum. In addition, its most sensitive part, the thermal camera lens, is protected by a replaceable protective cap made of germanium.
Precise RGB Camera with Optical 10x ZOOM for Inspections
The WIRIS Pro’s RGB camera comes with Full HD (1920 x 1080 px) resolution and, most importantly, it provides an absolutely unrivalled optic ultrazoom – up to 10x (6.9° to 58.2° field of vision). ZOOM is fully synchronous with the thermal camera and makes for an advanced inspection tool.
Video Streaming and Commands via WiFi
RTSP video streaming, image and command transfer through Wi-Fi add to the WIRIS OS functionalities. These features are provided by the RJ 45 Ethernet port.
See more information in our Stream SDK tutorial.
WIRIS OS - Capture the Potential
WIRIS OS has been in continuous development for over 4 years, and it has been tested on previous generations of Workswell WIRIS® cameras. Today, WIRIS OS allows you to capture the full potential of the camera’s sensor and computing hardware, and thus enjoy functionalities which similar products without an operating system cannot even come close to.
SDK - your own applications
We provide an SDK (Standard Development Kit) with every Workswell WIRIS® Pro to enable you to develop your own applications. These libraries give access to low-level functionalities and enable the application developer to maximize the potential of the camera’s hardware.
See more information in Data SDK tutorial
HW communication, control ports & interfaces
Workswell's WIRIS® Pro also offers an interface enabling the widest range of connections to the drone, the control unit, an external GPS sensor, and other devices. A Wi-Fi low latency live video streaming and command link is also available. The following HW interfaces are on offer:
S.BUS
CAN bus (DJI M600 and A3 controller compatible)
Ethernet (RJ 45 with RTPS streaming and control signals transmission option)
MavLink – Provides a wide range of standard and custom commands for controlling the thermal camera during the flight.
External GPS connection
External trigger
CANbus & UART serial communication
Picture in Picture Functionality
The innovative picture-in-picture feature allows you to merge a thermal image with an RGB camera image in real-time, even with 10x optical ZOOM.
Thermal and Visual Comparison
Photogrammetry, 3D mapping and 3D modeling are standard post-processing tools that enhance the presentation and visualization of captured aerial data. With our Workswell WIRIS Pro thermal camera, you can offer customers and colleagues the most compelling images on the market.
In the example below, our high-resolution ortothermogram composed of over 600 separate thermograms in Pix4D visualizes a photovoltaic power plant with an area of 1.5 hectares. This picture was taken during a single, 22-minute-long flight.
See in full resolution
