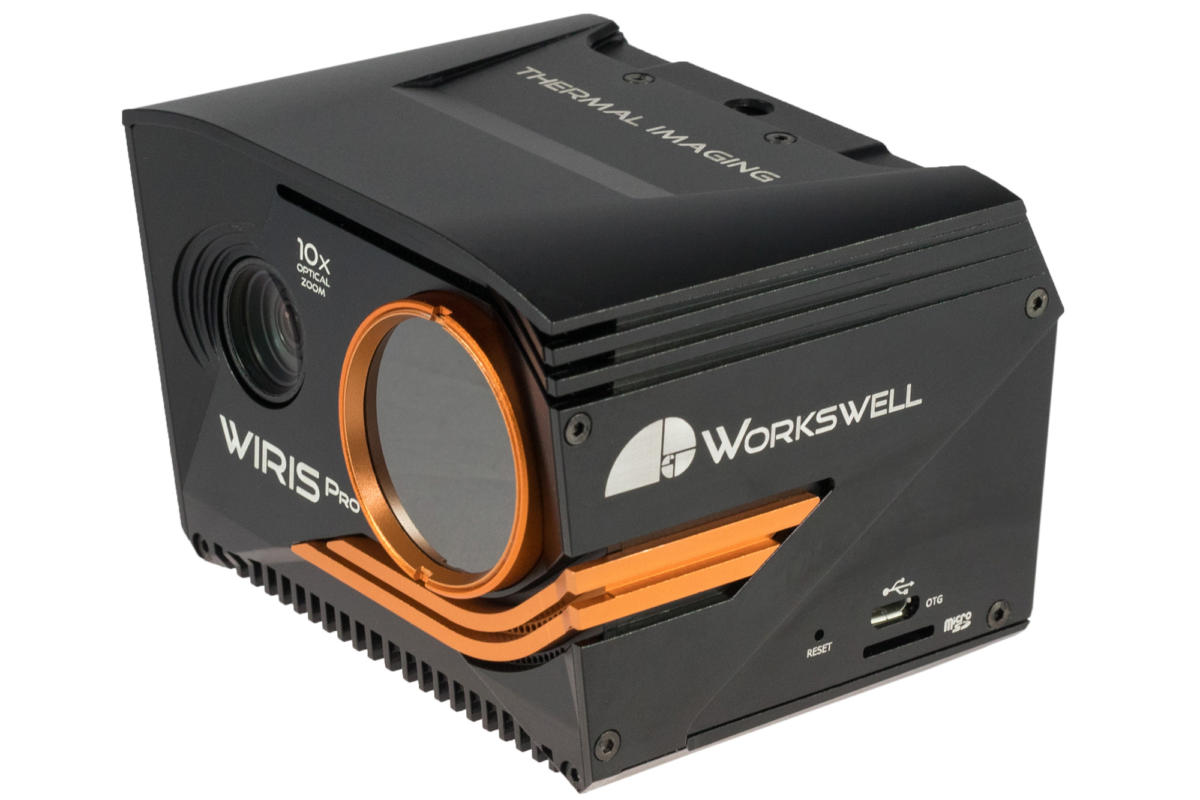

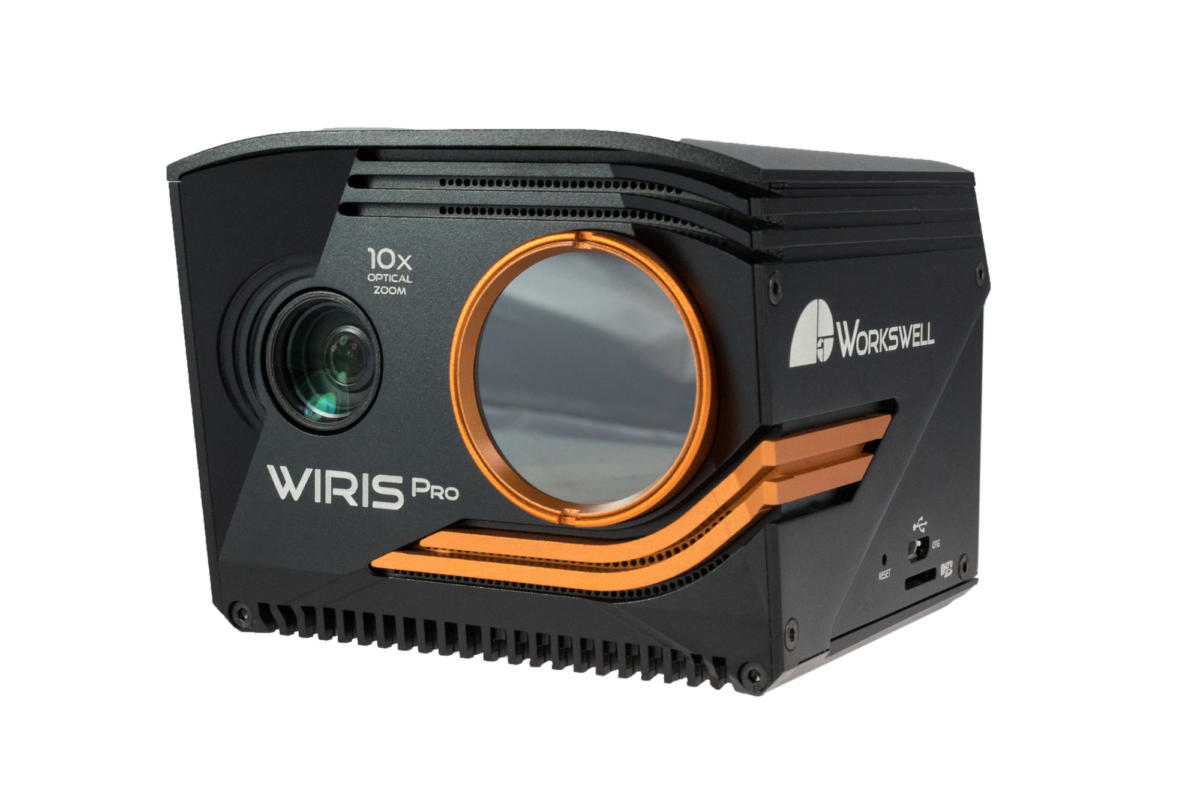

WIRIS Pro Sc
The Workswell WIRIS Pro Sc is a state-of-the-art thermal imaging camera designed for the most demanding applications, including geological, archeological, and forestry studies, ecological and environmental research, structural investigations into dams, chimneys, and bridges, and a variety of other advanced projects. The Workswell WIRIS ProSc camera is built for applications requiring the highest temperature sensitivity and accuracy, superior service, and comprehensive software support.
Broad temperature range
Highest sensor resolution on the market
Precise laboratory calibration
Interchangable lenses
10x optical RGB zoom
Thermal frame
Advanced scientific-grade camera
WIRIS Pro Sc by Workswell is an advanced scientific-grade thermal imaging camera designed for professional applications.
With its cutting-edge features and high-quality performance, WIRIS Pro SC is a top choice for industries such as industrial inspection, research and development, public safety, and many other fields where precise temperature measurement and thermal imaging are crucial.
The WIRIS Pro Sc is a product developed by Workswell, a leading provider of innovative thermal imaging solutions. Workswell is known for its expertise in developing thermal imaging technology that delivers exceptional image quality, accuracy, and reliability. The WIRIS Pro Sc is a testament to Workswell’s commitment to providing advanced thermal imaging solutions that meet the demands of various industries and applications.
Equipped with state-of-the-art features such as a high-resolution sensor, multiple lenses, and advanced image processing algorithms, WIRIS Pro delivers exceptional image quality and thermal sensitivity. It also offers a range of measurement tools and features for advanced analysis, including temperature measurement, radiometry, and advanced reporting capabilities.
WIRIS Pro Sc is a versatile and reliable thermal imaging camera and solution, that can help professionals in various industries to detect and diagnose issues quickly and accurately. With its robust design and advanced features, it is an ideal tool for anyone looking to improve their thermal imaging capabilities and streamline their workflow.
Exceptional performance
Featuring state-of-the-art technology, the WIRIS Pro Sc offers high-resolution thermal imaging with a wide temperature measurement range, allowing users to capture and analyze thermal data with unparalleled precision. It also comes equipped with a range of advanced features such as radiometric measurement, temperature alarms, data logging, and more, making it a powerful tool for professionals who require accurate and reliable thermal imaging capabilities.
The WIRIS Pro Sc is designed to be user-friendly, with an intuitive interface and ergonomic design that ensures ease of use in various operating conditions. Its durable construction and robust performance make it suitable for use in challenging environments, such as industrial sites, research facilities, and emergency response scenarios.
In summary, the WIRIS Pro Sc by Workswell is a cutting-edge thermal imaging camera that offers exceptional performance, accuracy, and reliability. Its advanced features and user-friendly design make it an ideal choice for professionals in a wide range of industries, enabling them to capture precise thermal data for a variety of applications. Whether it's for industrial inspections, research and development, or public safety, the WIRIS Pro Sc is a powerful tool that can deliver reliable thermal imaging results in demanding environments.
A Thermal Camera for the Most Demanding Applications
The WIRIS Pro Sc is a thermal imaging camera designed for the most demanding applications. An example of its performance in precision agriculture is given below. This orthothermogram is composed of 1500 separate thermograms, each of which were acquired by the WIRIS Pro Sc and composed in Pix4Dmapper software. The orthothermogram maps an area of approximately 5 hectares (50,000m2) and was taken by a drone during two separate flights, with a flight time of 50 minutes, from a height of 70m.
The Workswel WIRIS Pro Sc is the only UAV thermal imaging camera that can meet all the requirements of this extremely demanding application
- Highest thermal sensitivity (< 30 mk)
- Exceptionally low temperature drift, even during long flights
- Very high thermogram homogeneity
See in full resolution
Enhanced land management
Both water and plant management influence the local microclimate. By draining and removing greenery over large expanses, people induce desert climates, especially around cities and fields, which cannot be resolved through the application of purely technical remedies. In this image, one can clearly identify the places from which landscape drought and the consequent loss of vegetation are emanating. We can see that the naked hill on the right above the vineyard, which has been impacted by intense soil erosion, warms its surroundings, and that the effects of this heat reach into the vineyard.
On the other hand, the vegetation to the left of the vineyard has a cooling effect, even in its immediate vicinity, which also penetrates into the vineyard, which covers an area of approximately 2 ha. The picture indicates what remedial action should be taken, and where it will be easiest to start restoring vegetation.
We believe that the Workswell WIRIS Pro Sc enhances land management. With its help, it is possible to localize, visualize and reverse local problems, even when they are considered to be irreversible manifestations of global processes. By facilitating local action, this camera opens a path towards the improvement of vital natural systems.
High Resolution and Thermal Sensitivity
Many airborne applications of thermography have non-standard requirements, such as high temperature measurements. The WIRIS Pro Sc Thermal Camera can therefore measure temperatures of up to 1500 ° C when equipped with an external filter.
Our thermal imaging camera is equipped with an LWIR microbolometric sensor with 640x512 px resolution and Super Resolution Mode functionality, which facilitates the creation of a final thermogram at 1266 x 1010 px resolution. This is the highest thermal still image resolution available on the market for this camera size.
The imager's advanced calibration procedure ensures its accuracy, as well as the standard model's temperature sensitivity of 30mK. A calibration certificate aligned with TUV standards is included in each package.
Precision Metrology
Each WIRIS Pro Sc is precisely calibrated in our climatic chamber. This doesn’t just ensure the accuracy of the thermal camera as it measures different temperatures – it underwrites precision at a wide variety of operating temperatures. We have achieved absolutely unmatched measurement accuracy in the field of aerial thermography, ti. +-2°C or +-2%.
We know that industrial applications present a serious challenge to metrological endeavors. To ensure the accuracy of our devices in the face of this challenge, we calibrate each of our lenses individually. Our thermal imaging camera WIRIS Pro and also all cameras are individually manufactured and precisely calibrated, and we deliver a final calibration certificate along with each unit.
Compatible with any Platform

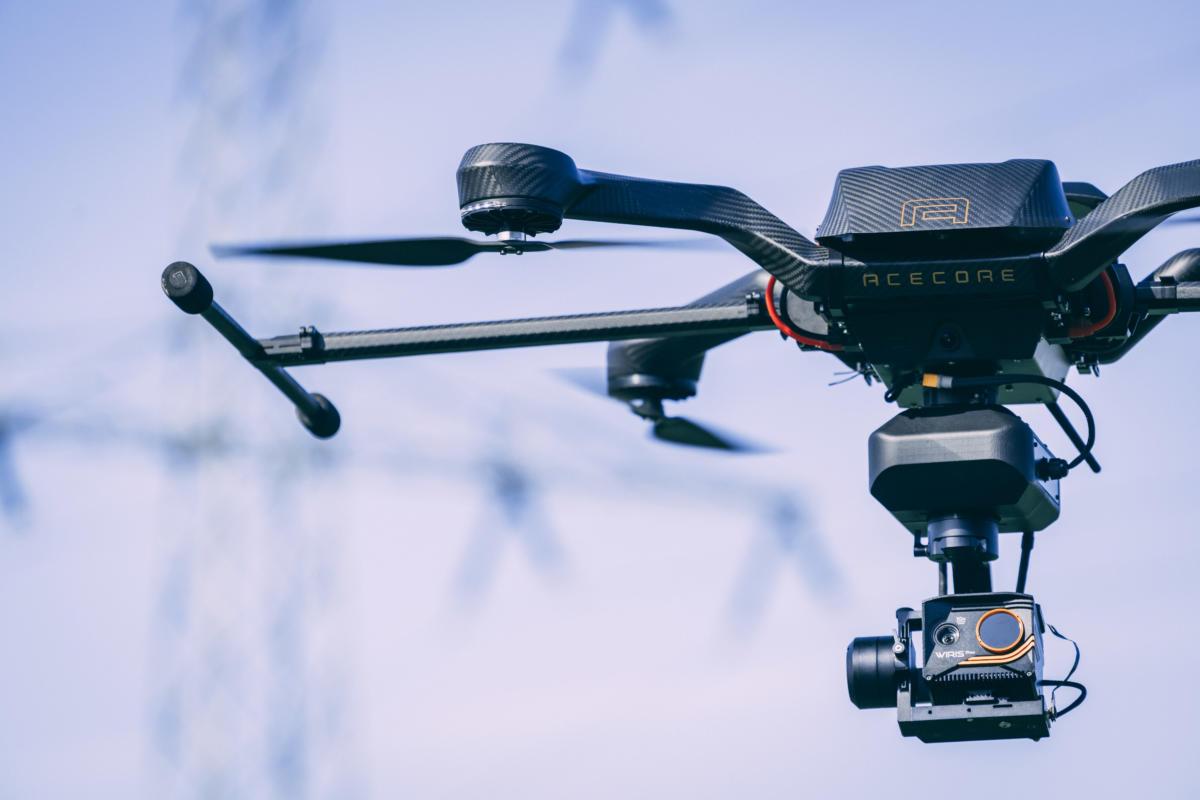

Its many interfaces make the Workswell WIRIS Pro Sc a truly versatile system that can be placed on the DJI M600 Pro drone, as well as on the drones of most other manufacturers, not limited to AceCore Zoe, VideoDrone, Flydeo, and Height Technologies.
Picture in Picture Functionality
The innovative picture-in-picture feature allows you to merge a thermal image with an RGB camera image in real-time, even with 10x optical ZOOM.
Interchangeble Lenses
The WIRIS Pro Sc thermal imaging camera can be purchased with an 18°, 32°, 45° or 69° lens. However, the lenses are user-interchangeable at any time, and the camera can be supplied with additional lenses as accessories. Each lens is calibrated separately.
Video Streaming and Commands via WiFi
RTSP video streaming, image and command transfer through Wi-Fi add to the WIRIS OS functionalities. These features are provided by the RJ 45 Ethernet port.
WIRIS OS - Capture the Potential
WIRIS OS has been in continuous development for over 4 years, and it has been tested on previous generations of Workswell WIRIS® cameras. Today, WIRIS OS allows you to capture the full potential of the camera’s sensor and computing hardware, and thus enjoy functionalities which similar products without an operating system cannot even come close to.
SDK - your own applications
We provide an SDK (Standard Development Kit) with every Workswell WIRIS® Pro to enable you to develop your own applications. These libraries give access to low-level functionalities and enable the application developer to maximize the potential of the camera’s hardware.

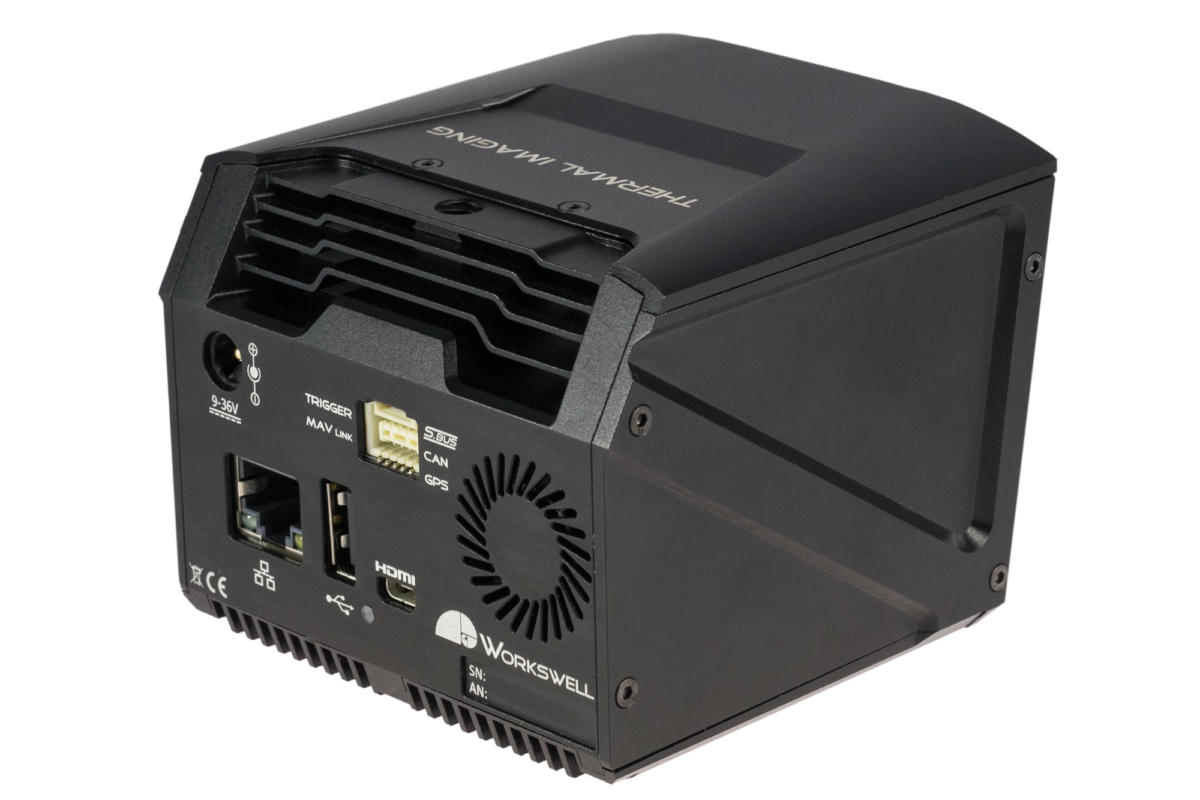

HW communication, control ports & interfaces
The Workswell WIRIS® Pro Sc also offers an interface enabling the widest range of connections to the drone, the control unit, an external GPS sensor, and other instruments. A Wi-Fi low latency live video streaming and command link is also available. The following HW interfaces are available:
S.BUS
CAN bus (DJI M600 and A3 controller compatible)
Ethernet (RJ 45 with RTPS streaming and control signals transmission option)
MavLink – Provides a wide range of standard and custom commands for controlling the thermal camera during the flight.
External GPS connection
External trigger
CANbus & UART serial communication
Weight and Dimensions
Workswell's WIRIS® weighs less than 430 g, which makes it very convenient for drone use.
WEIGHT: < 430 g (0.95 lb)
DIMENSIONS : 83 x 85 x 68 mm (3.26 in x 3.34 in x 2.67 in)
Videos
Related applications

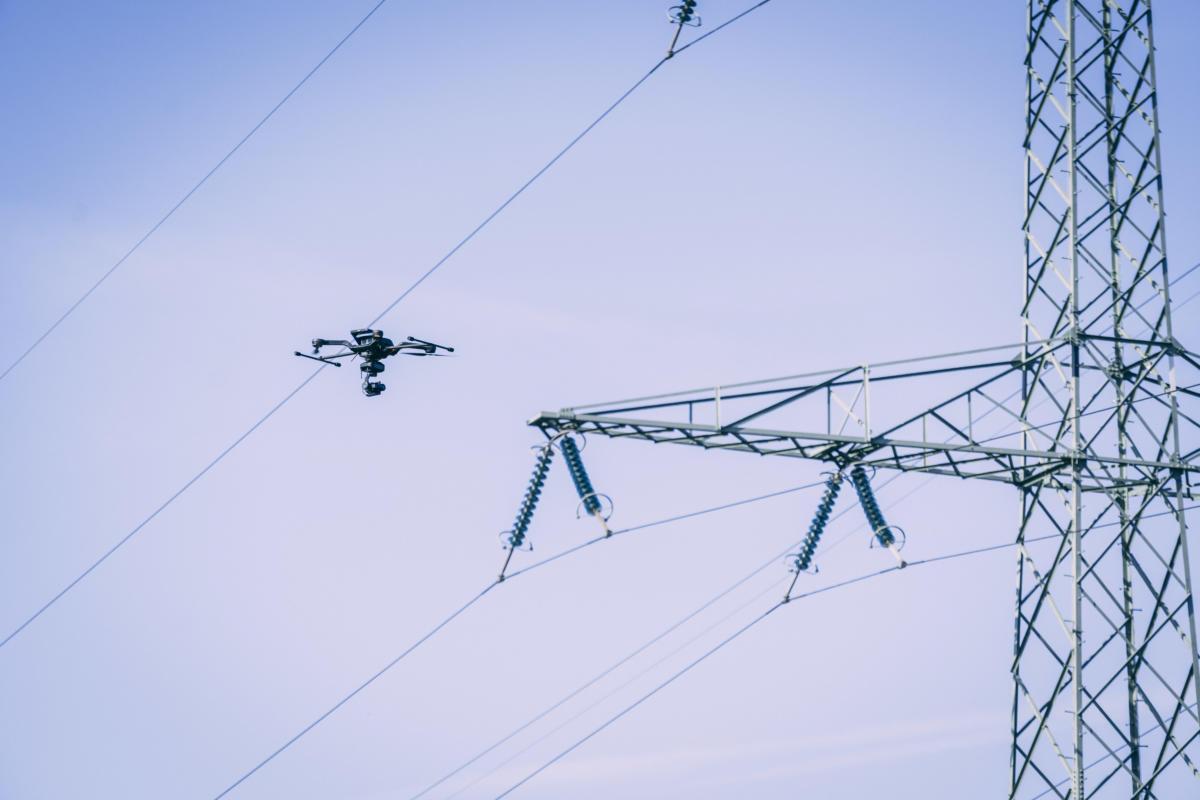

From power engeneering and power plants to building and pipeline inspetions
Details are important
Thermolab is a software for detailed analysis of thermograms from thermal and infrared cameras, allowing the user to edit the data into different formats and create clear reports from the thermograms. All standard data analysis functions are available in the program (temperature at a point, minimum and maximum of the area, temperature profile, zoom, temperature scale change, color palette, emissivity, etc.) as well as extended functions such as GPS location of the image and the ability to display RGB digital images.
WIRIS OS
WIRIS OS has been in continuous development for over 4 years, and it has been tested on previous generations of Workswell WIRIS® cameras.
Today, WIRIS OS allows you to capture the full potential of the camera's sensor and computing hardware, and thus enjoy functionalities which similar products without an operating system cannot even come close to.
Gallery
Do you have any questions?
Please don’t hesitate to contact me if you need further information.
Other information
| WIRIS ProSc Key features description | |
| Super Resolution Mode | WIRIS ProSc takes Super Resolution Mode 1.3Mpx IR images in one shot |
| Operating onboard system | WIRIS OS for full real-time data streaming and control during the flight
|
| 10x Optical Antivibration zoom | Full HD 10x optical zoom camera with anti-vibration compensation |
| Thermal camera specification | |
| IR camera resolution | 640 x 512 pixels |
| IR Super Resolution Mode | 1 266 x 1 010 pixels (improvement of native resolution up to 1.3 Mpx) |
| FPA active sensor size | 1.088 x 0.8705 cm |
| Temperature ranges | -25 °C to +150 °C (-13 °F to 302 °F) -40 °C to +550 °C (-40 °F to 1 022 °F) optional temperature range 50 °C to 1 000 °C (122 °F to 1 832 °F) optional temperature range 400 °C to 1 500 °C (752 °F to 2 732 °F) |
| Temperature sensitivity | 30 mK |
| Accuracy | ±2 % or ±2 °C |
| Frame rate | 30 Hz or 9 Hz |
| Spectral range / detector | 7.5 – 13.5 μm / Uncooled VOx microbolometer |
| Calibration of each lens | Package includes a calibration certificate |
| Available lenses | 18°, 32°, 45°, 69° (exchangeable lenses, all calibrated), visit FOV calculator |
| Protective filter on lens | Filter protects the lens against external damage during the flight |
| Digital zoom | 1 – 12x continuous |
| Digital visual camera | |
| Resolution | 1 920 x 1 080 pixels (Full HD), 1/3” sensor, Auto white balance, Wide dynamic range, Backlight compensation, Exposure and Gamma control |
| Optical zoom | 10x optical zoom with vibration compensation |
| View angle | ultra zoom 6.9° – extra wide 58.2°, focal 33.0 mm – 3.3 mm |
| Noise reduction | Special 3D noise reduction function |
| Focus | Autofocus with Direct Focus Zoom synchronization |
| Memory and data recording | |
| Memory | Internal high-speed SSD 128GB or 256GB for image and video recording External slot for Micro SD card & USB 2.0 for USB stick for taking images |
| Image and video formats | Radiometric JPEG images and Digital camera Full HD JPEG images Radiometric TIFF images (Pix4D and Agisoft compatible for 3D modeling) Digital camera h.264 encode video HD recording Radiometric full-frame IR recording (raw data recording in 30 Hz) |
| GPS geo-tagging (image & video) | |
| GPS tagging (image & video) | MavLink or External GPS or DJI A3 controllers compatible via CAN bus |
| Interfaces & real-time remote control | |
| 10-pin digital port | S.Bus CAN bus (compatible with DJI M600 and A3 controllers) MavLink External GPS connectivity External trigger CANbus & UART |
